Wireless Control GPS IP65 Waterproof Outdoor P5 SMD Mobile LED Display Sign for Bus
Mobile media, as an important window of city civilization, are of strong mobility and ubiquitousness, running in the streets of city every day,and are disseminators of information,Q-Color Wireless Control IP65 Waterproof Outdoor P5 SMD Mobile LED Display Sign for Bus

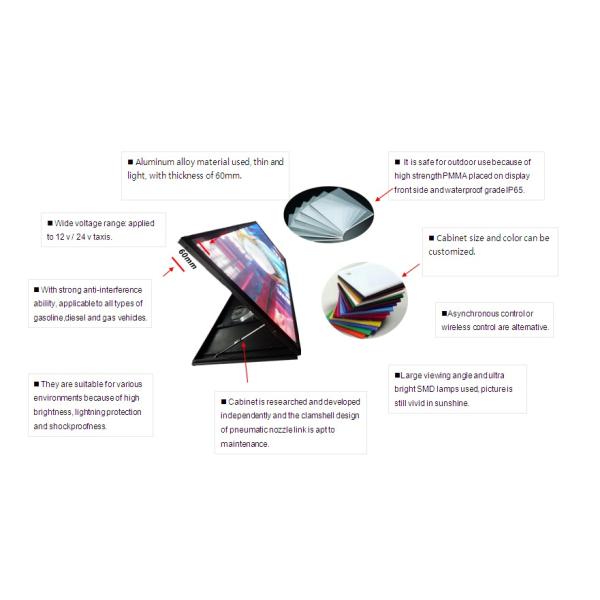

Main features:
1.Aluminum alloy material used, thin and light, with thickness of 60mm;
2.Wide voltage range: applied to 12V / 24 V buses;
3.Suitable for various environments due to high brightness;
4.Waterproof grade IP65;
5.Cabinet size and color can be customized;
6.Asynchronous control or wireless control alternatively;
7.Large viewing angle and ultra bright SMD lamps, picture is still vivid in sunshine;
8.Lock position for certain advertising;
9.GPS real-time monitoring;
10.Group remote control;
11.Supports flash, picture, video and text.
Main Specification:
| Model | | MS-5S | MS-6S |
| Pixel Pitch | mm | 5 | 6 |
| Physical Density | dot/m2 | 40000 | 27777 |
| LED Configuration | | 1R1G1B | 1R1G1B |
| LED Type | | SMD3528 | SMD3528 |
| Module Size | mm*mm | 160*160 | 192*192 |
| Module Resolution | w*h | 32*32 | 32*32 |
| Module Weight | Kg | | |
| Driver Mode | | 1/8 Scan | 1/8 Scan |
| Brightness | cd/m2 | ≥3800 | ≥3600 |
| Cabinet Resolution | w*h | 352*128 | 288*96 |
| Max Power Consumption | W/m2 | ≤750 | ≤600 |
| Average Power Consumption | W/m2 | 240~360 | 200~300 |
| Cabinet Size | mm | 1860*740*100 | 1828*676*100 |
| Viewing Angle | degree:H | 120 |
| degree:V | 120 |
| Use Temperature(oC) | Operating(oC) | -20ºC to +50ºC |
| Storage(oC) | -20ºC to +50ºC |
| Input Voltage (nomina) | VAC | 12V DC |
| Failure Rate | | <1/100000 |
| Life Time | hrs | ≥100,000 |
Cabinet view:
Our services:
1.Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
2.Customized LED screen software and hardware products will be provided base on customers’ requirements.
3.Provide LED screen technical training (factory or on-site) for different customers.
4.Drawings like steel structure drawing, connection drawing, etc. can be provided after the order.
5.Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
6.Annual exhibition show in USA and Netherlands :ISA,Infocomm,ISE etc.
Domestic and Overseas Projects:
Could you just please let us know your detailed project information?
1. The pixel pitch you require or the viewing distance(the distance between the LED displays and the audience)?
2. for permanent installation or rental application?
3. the detailed dimensions of the LED screen, width and height?
Q-Color would be very glad to provide you the most professional solution with good price upon receipt of your confirmation
